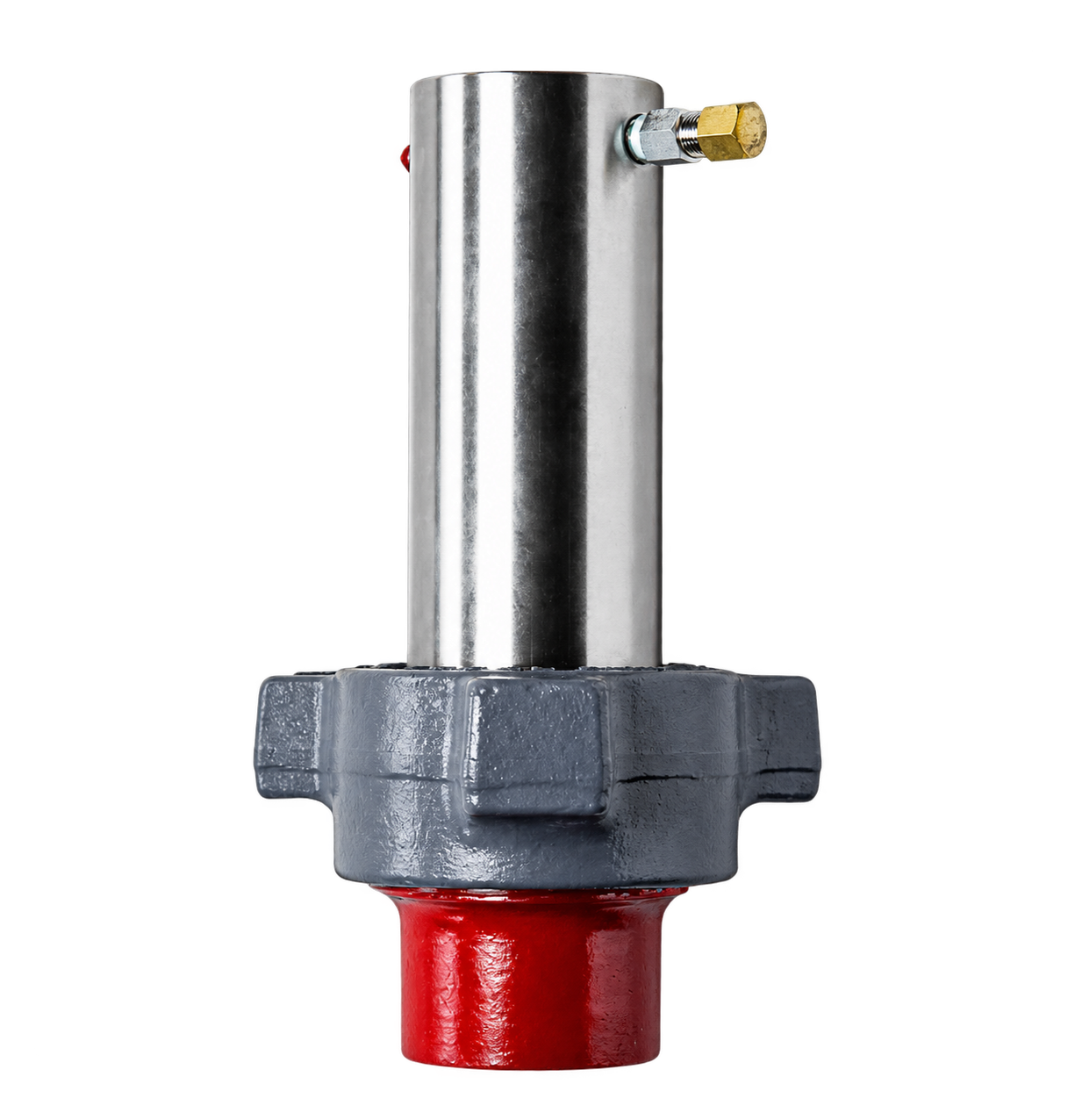

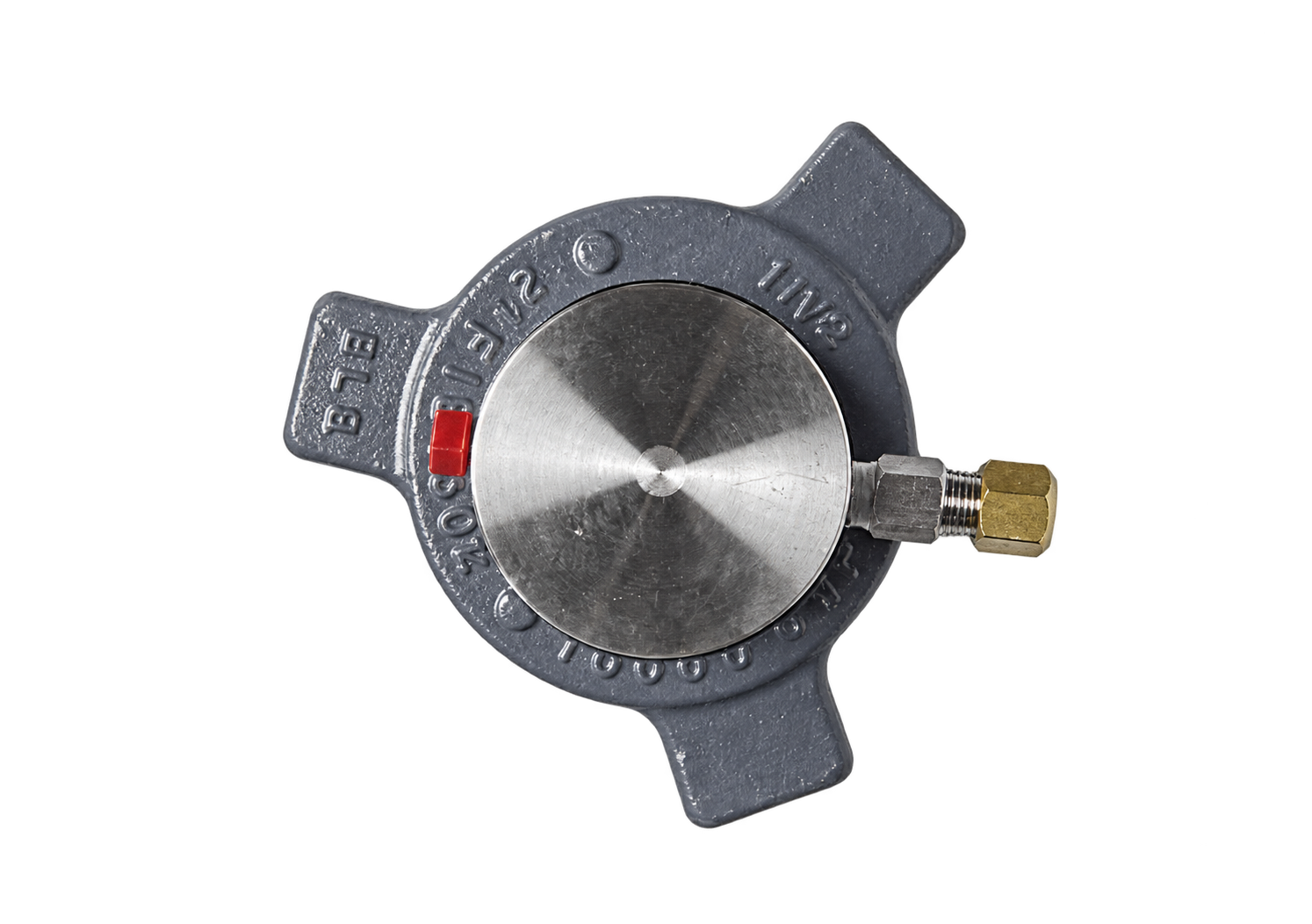

Pressure isolation built for harsh fluids and demanding service. A 316 stainless steel piston isolator engineered to protect pressure instruments from corrosive, abrasive, and high-solids process fluids. Standard 1" × 1" port configuration. Compact 9-inch profile.
316 stainless steel construction for corrosion resistance in sour service, chloride-rich, and chemically aggressive applications
Free-floating piston design isolates the gauge from drilling mud, completion fluids, cement, acid, and other abrasive or corrosive media
1" hammer union process connection for fast field installation and tear-down
1" instrument port with bleed/fill provision for clean priming and air removal
Compact 9" profile fits tight manifold and skid configurations
Engineered, assembled, and pressure-tested in Houston, Texas
