TONG TORQUE AND TONG LINE PULL SYSTEMS

Tong Torque and Tong line systems

Accurately indicate the torque applied to oilfield tubulars as they are run, reducing under- and over-torquing.

Each system includes a hydraulic load cell (tension or compression type), shackles (tension type models only), hose assembly, a 6" fluid-filled gauge with damper assembly, and a recharge kit consisting of a hand bump and CanGlobal's All Weather Instrument Fluid.

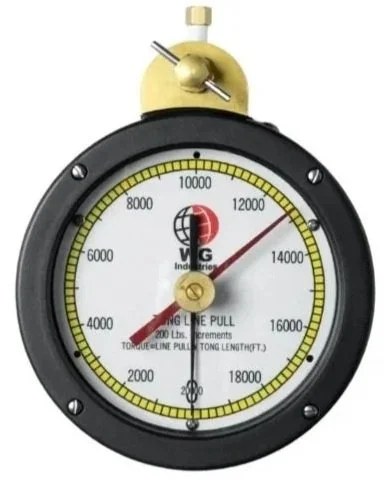

Tong Line Pull Systems

Used in applications where there are more than one set of tongs with different handle lengths, tong line pull systems. Indicate make-up or break-out torque (in Ibs. of line pull) for tool joints, drill collars and drill string components.

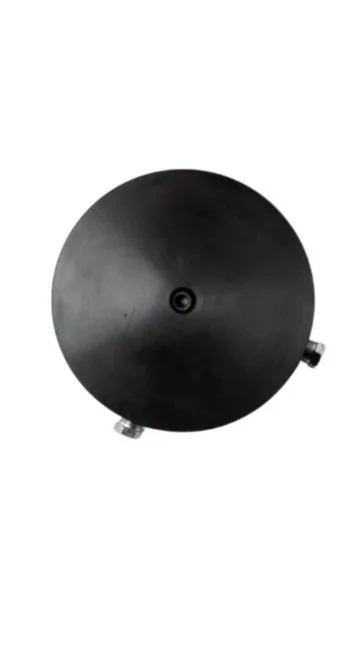

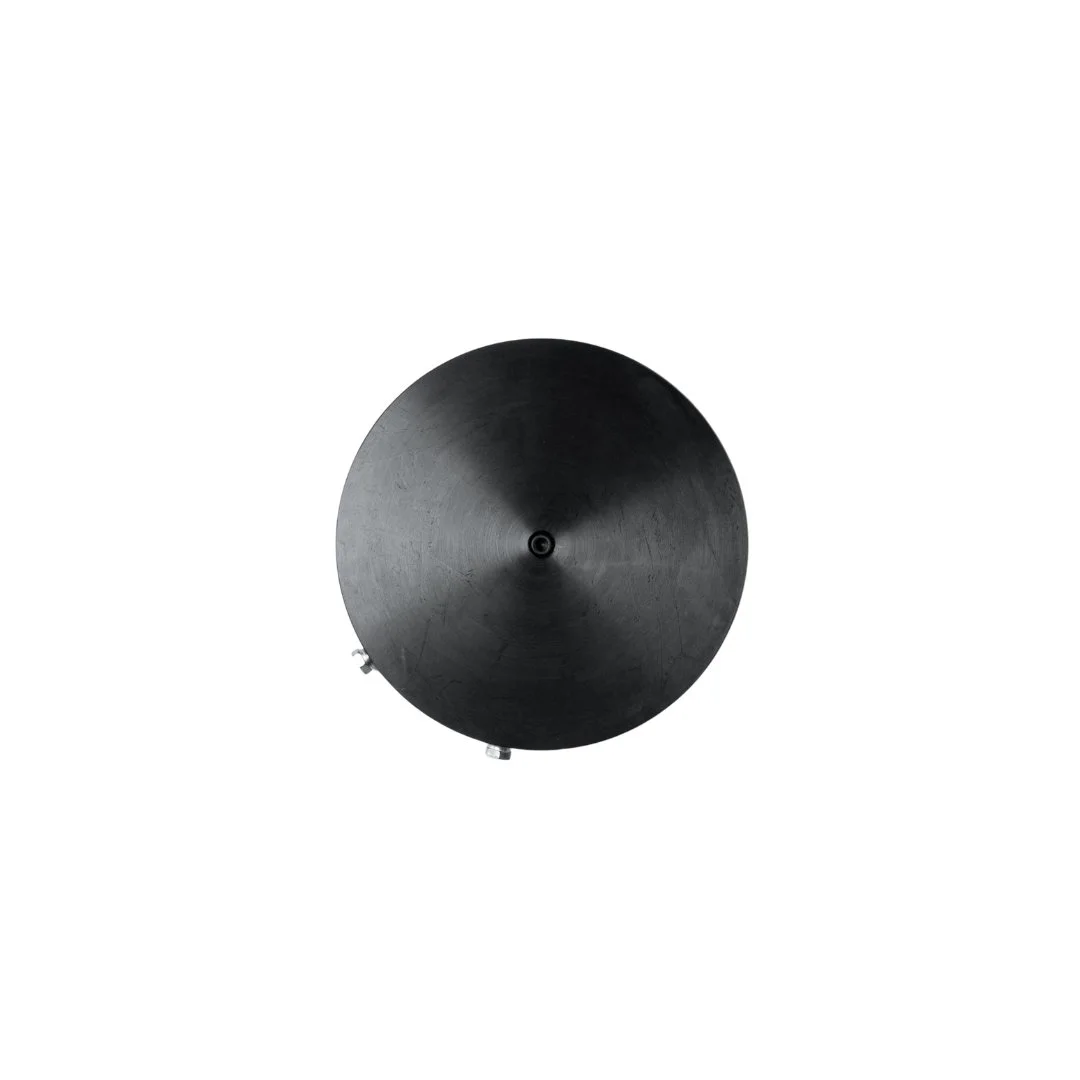

Working in conjunction with a load cell connected directly to the tong handle, a 6" fluid-filled gauge directly reads Ibs. of line pull. As each joint is made up, the line pull is converted to a hydraulic pressure signal within the cylinder and is sent to the gauge through a hydraulic hose. To determine the actual torque being applied, the gauge reading is multiplied by the tong handle length in feet.

Complete with a target pointer the gauge can be set to the desired torque requirement.

A large variety of systems are available with up to 30,000 lbs. of single line pull. Available in English, Metric or Dual Scale configurations.

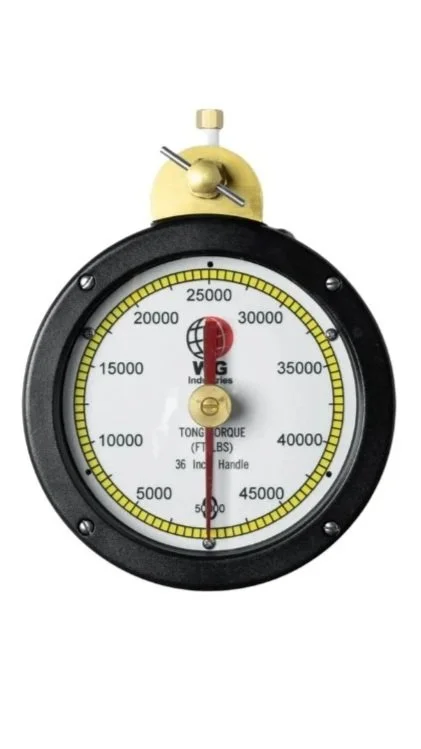

Tong Torque Systems

Used in applications where there are more than one set of tongs with different handle lengths, tong line pull systems. Indicate make-up or break-out torque (in Ibs. of line pull) for tool joints, drill collars and drill string components.

Working in conjunction with a load cell connected directly to the tong handle, a 6" fluid-filled gauge directly reads Ibs. of line pull. As each joint is made up, the line pull is converted to a hydraulic pressure signal within the cylinder and is sent to the gauge through a hydraulic hose. To determine the actual torque being applied, the gauge reading is multiplied by the tong handle length in feet.

Complete with a target pointer the gauge can be set to the desired torque requirement.

A large variety of systems are available with up to 30,000 lbs. of single line pull. Available in English, Metric or Dual Scale configurations are also available upon request. Rugged, simple load cell designs guarantee an extra-long life and ease of maintanance.

Tong torque systems consist ot a tension or compression load cell, a 6" fluid-filled gauge, 5' hvdraulic hose (additional hose lengths available upon request). fluid hand pump and CanGlobal's all weather Instrument Fluid.

Benefits

  • Designed and built for the rugged requirements of the oilfield. Load cells are designed to ensure a long service life with minimum maintenance

  • 6" fluid-filled gauge has years of proven reliability and ease of maintenance.

  • Target pointer helps operator maintain accurate torque

  • Box or Panel Mount

Ordering information

  • CTP or CTT series

  • Tong make and model as well as dial capacity and scale configuration

  • Box or panel mount

  • Hose length if different from standard (standard:
    5' for CTT series and 25' for CT series)

  • Tension or compression type load cell

CTP 1

  • Indicates make-up or break-out torque (in lbs. of line pull) for all all oilfield tubulars

    6" fluid-filled gauge

    Operator-adjustable target pointer can be set to

    sired torque requiremen

    Modes avalable to wol

    • Capacitv ranges from

    10.000 Ibs. to 30.000 lbs

    OUi

    • English. Metric or Dual Scale configurations

    Custom dial logoing available

CTT Series

  • Indicates torque in it. Ibs. applied to each joint when using power tongs to run Oilfield tubulars Models available for all makes and models of power tongs.

  • Tension or compression style load cells available

  • Wide variety of capacities available to suit any application and contiguration

  • English, Metric or Dual scale contigurations
