Simple Pointer Mud Pressure Gauges
Built to pair. Engineered to last.

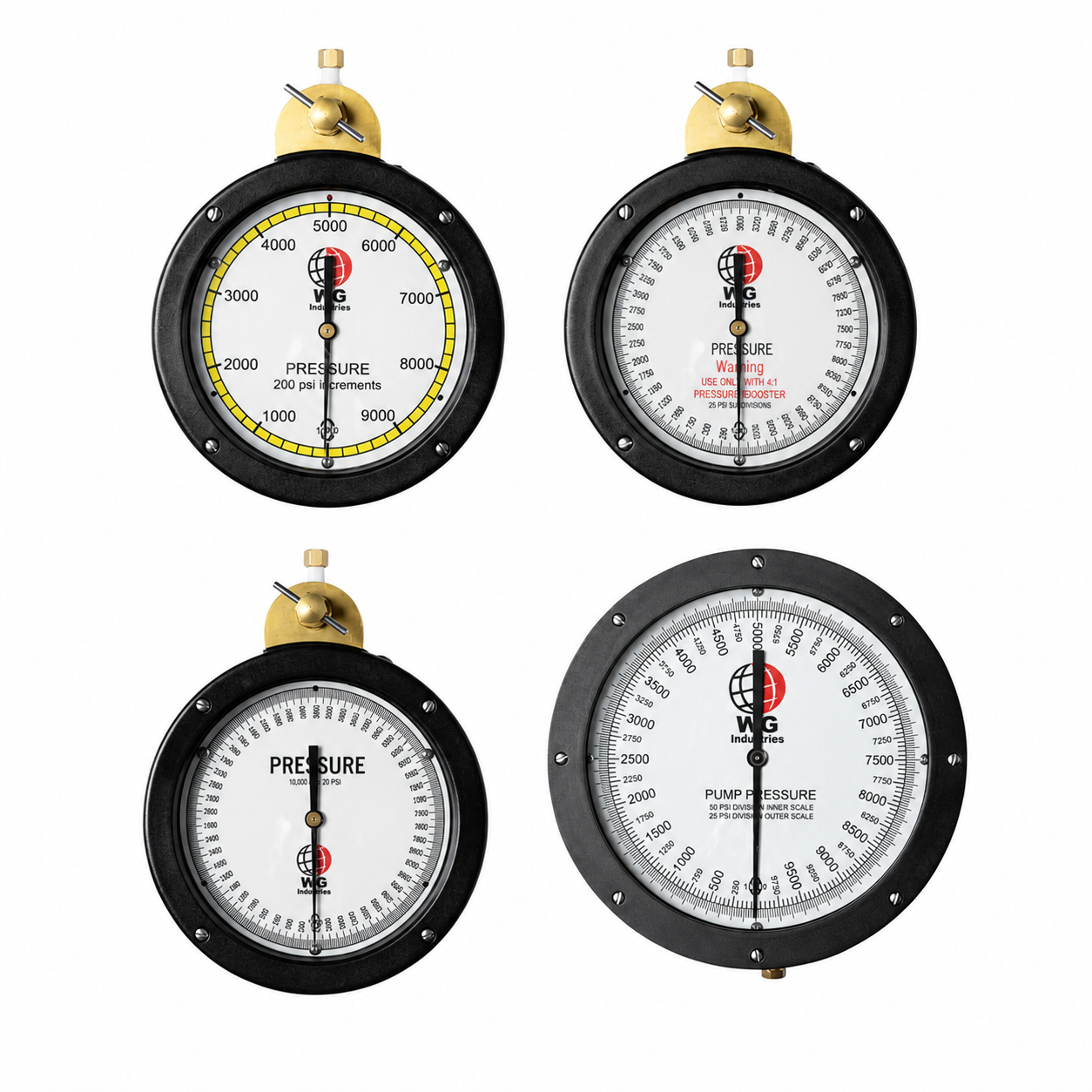

The WG Industries 6" Simple Point Pressure Gauge is engineered to operate with a 4:1 pressure debooster, allowing crews to safely monitor high-pressure systems on a single, easy-to-read dial. The full-scale layout with 25 PSI subdivisions delivers clear, fast readings in the field, even at a distance.
Heavy-duty black housing, brass top mount, and a calibrated dial built and tested in Houston, Texas.
KEY FEATURES
Designed exclusively for use with a 4:1 pressure debooster
Large 6" dial face for fast, clear readings at a distance
25 PSI subdivisions for precise field measurement
Brass top-mount fitting for direct installation on the debooster
Built, calibrated, and tested in Houston, Texas
APPLICATIONS
Wellhead and frac iron pressure monitoring
Mud pump and standpipe pressure readings
Cementing and stimulation operations
Dual-gauge manifold installations
Direct high-pressure readings. No debooster required.
The WG Industries 6" Simple Pointer Pressure Gauge delivers direct 0 to 10,000 PSI readings without the need for an inline debooster. The large 6" face and 20 PSI subdivisions give field crews clear, accurate pressure data at a glance.
Heavy-duty black housing, brass top mount, and a calibrated dial assembled and tested in Houston, Texas.
KEY FEATURES
Direct-reading 0 to 10,000 PSI scale, no debooster required
Large 6" dial face for clear, at-a-distance readings
20 PSI subdivisions for precise field measurement
Brass top-mount fitting for fast installation
Built, calibrated, and tested in Houston, Texas
APPLICATIONS
Wellhead and pump pressure monitoring
Standpipe and circulating system readings
High-pressure manifold installations
General oilfield pressure measurement up to 10,000 PSI
Single Pointer Pressure Gauge System Features:
3,000 p.s.i., 6,000 p.s.i., 10,000 p.s.i., 15,000 p.s.i.
7,000 kPa, 14,000 kPa, 21,000 kPa, 35,000 kPa, 42,000 kPa, 70,000 kPa
MPa, and BAR capacities
Benefits:
6" dial face for a large and clear reading display
After years of service, this gauge has been proven accurate even in the most extreme of conditions.
360 degree calibration allows you to see all pressure changes, no matter how small.
Adjustable gauge sensitivity to increase reading accuracy in all situations.
Complete customization available for max pressure and dial subdivisions for the most accurate readings.
System can be configured to be used with H2S service.
Can be use for high pressure and low pump pressure operations and choke manifold pressure control operations.
To Order, Specify:
Application
Required capacity
Gauge mounting designs
English or Metric divisions
Hose length
